pladebelagt nøjagtigt laserskærende fibermaskine

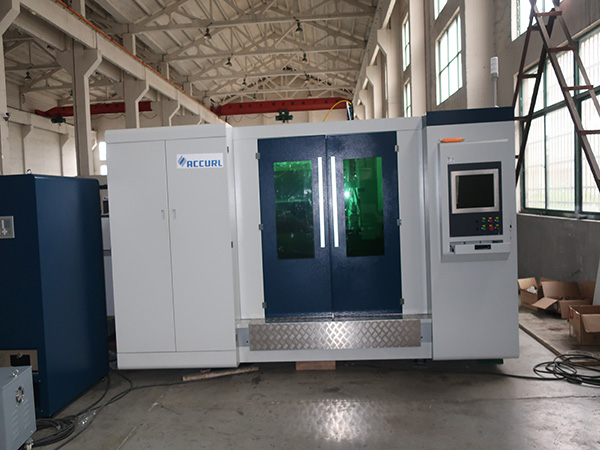

Plate Covered Accurl laser cutting fiber machine with 4000 x 1500mm interchangeable work tables

specifikationer


Skærehastighed: 0-60m / min
Graphic Format Supported:AI, DWG, DXF, PLT, Other
Anvendelse: Laserskæring
Stand: Ny
Skære tykkelse: 0-30mm
CNC eller Ikke: Ja
Kølingstilstand: Vandkøling
Control Software:Cypcut,FSCUT2000,Cypnest
Oprindelsessted: Anhui, Kina (fastlandet)
Certificering: CE, SGS
Product Name:fiber laser cutting machine
Laser Power:700W-10000W
Drive Type:Servo motor and drive
Control:CNC
Max Moving Speed:100m/min
Power Allocation:380V/220V±10%, 50Hz/60Hz
Kontinuerlig arbejdstid: 24 timer
Weight of Machine:Approx: 8 Tons
Machine Size (l*w*h):8.5*3.3*1.9m
Eftersalgsservice Forudsat: Oversøisk servicecenter til rådighed

Product Detail


produktnavnfiber laser skære maskine
Laser Power700W-10000W
Laser TypeFiber Laser
Drive TypeServo motor and drive
ControlCNC
Max Moving Speed100m / min
Power Allocation380V/220V±10%, 50Hz/60Hz
Kontinuerlig arbejdstid24 timer
Weight of MachineApprox: 8 Tons
Machine Size (l*w*h)8.5*3.3*1.9m
Product Keywords5 axis laser cutting

1. The whole machine is fully enclosed to reduce laser radiation and prevent mechanical damage.
2. Exchange worktable, save loading and unloading time, and improve work efficiency
3. High-precision grinding grade gears, racks, low noise, high precision and fast speed
4.SMC pneumatic components, intelligent control, perfect low pressure perforation
5. High-strength integral welding body, cast aluminum X axis and high temperature annealing to ensure      that the machine tool will not be deformed after 20 years of normal use.
6. It is driven by world class precision ball screw/rack and linear guide to achieve high precision, high        efficiency and stability of the machine.
7. Equipped with the most advanced wireless handheld terminal for remote processing device
8. The equipment adopts high-performance numerical control system, AC servo motor and drive. It is a      integrating advanced technologies such as pneumatic, mechanical, optoelectronic and numerical control.

Ofte stillede spørgsmål


What is Laser Cutting?

Laser cutting is a technology that uses a laser to cut materials, and is typically used for industrial manufacturing applications,Industrial laser cutters are used to cut flat-sheet material as well as structural and piping materials.

How this Fiber Laser cut in Metal?

Very good, we can say the fiber laser is born for metal cutting because metal have high absorption rate of fiber laser, and it is cost of running much lower than high power Co2 laser.

What materials can be cut by this Fiber Laser Cutting Machine?

Most of the fabricator use it to cut Stainless steel, Carbon Steel, Mild Steel, Iron, galvanized steel, sometimes they cut Aluminum and brass too, And some customer uses it to cut gold, silver for jewelry production.

What is the thickness the machine can cut?

We would like to say different power source can cut different thickness material, it is related to material and gas pressure. for example, 1kw IPG laser source max cut 12mm CS, and 5mm SS, for details please write us for a table sheet of material, laser power, speed, gas etc.

How many options of laser source? What are the differences?

Normally we offer IPG, RAYCUS, MAX, differences is the cost and the cutting quality, we have experi

which operating software would be used in your machine?

Priority option is Cypcut controller, Economic cost and great performance, But we the other options are available.
